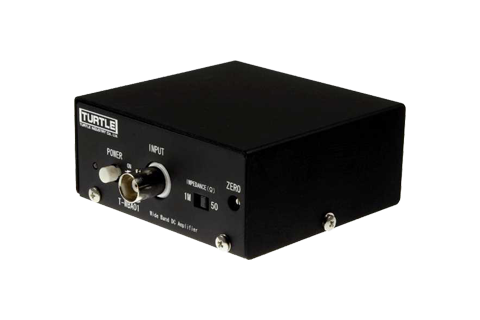

A broad band amplifier that supports from DC through to 20MHz. The input can be switched between 50 ohms and 1 mega ohm with a gain of 20dB and output voltage of ±2V (both values being with a load resistance of 50Ω). The output resistance is 50Ω, with the output being either inverted or non-inverted.

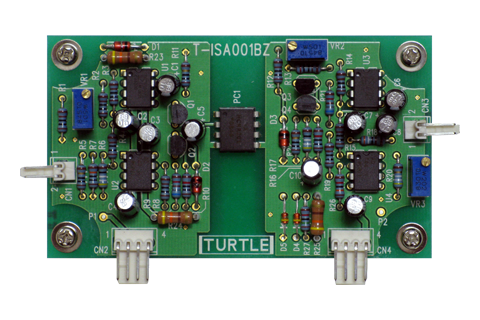

A broad band isolation amplifier that supports from DC through to 1MHz. The insulation utilizes the linear method, thus resulting in low level of noise. The input voltage is ±1V, the output voltage ±10V, and the gain 20dB.

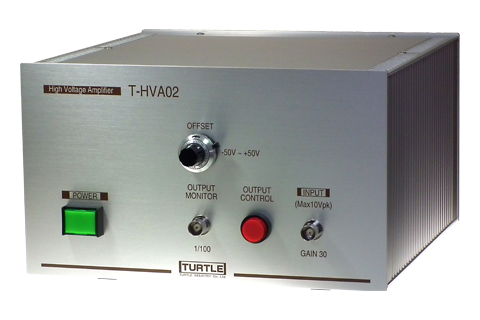

A compact direct current amplifier with an output voltage of 600Vpp. The input resistance is 1MΩ, the gain 29.5dB, and the maximum output current ±100mA.

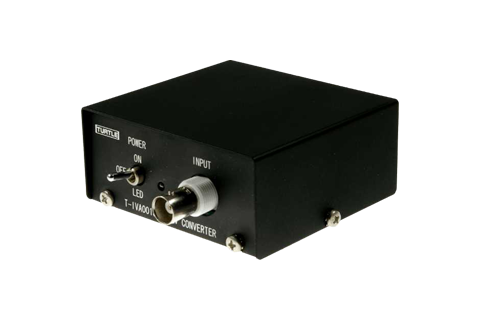

An amplifier that converts ultra-low current into voltage. The conversion rate is 1M (mega) [V/A].

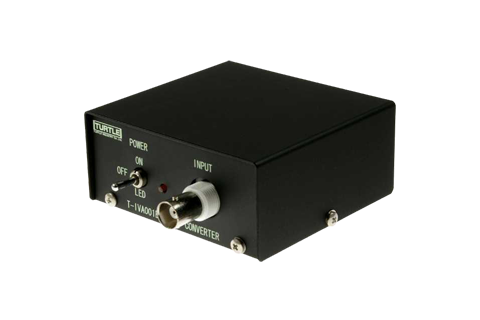

A highly sensitive, compact, but low-price galvanometer amplifier (ultra-low current-to-voltage convertor) that can measure picoamperes. The conversion rate is 1G (giga) [V/A].

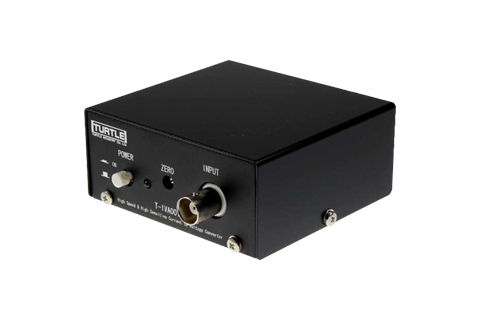

A highly functional galvanometer amplifier (ultra-low current-to-voltage convertor) with ultra-high sensitivity and a high-speed response. The band limiting filter can be selected and the measurement range switched between 10G (giga) [V/A] / 100G (giga) [V/A].

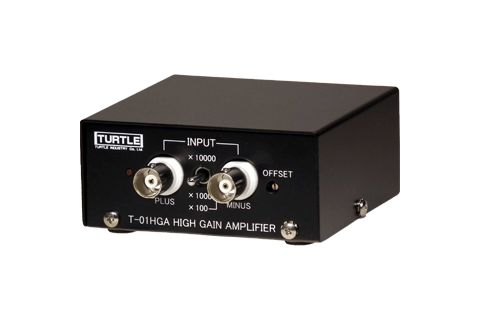

A voltage amplifier with the individual models supporting the following amplification factors: [T-01HGAZ] x100, x1000, x10000 [T-01MGAZ] x10, x100, x1000 [T-01LGAZ] x1, x10, x100
